Compact Passport Document Reader High Accuracy Travel Document Scanner

Name: Compact Passport Document Reader High Accuracy Travel Document Scanner
Brand: YJFIRST
Price: 1 USD

Compact Passport Document Reader High Accuracy Travel Document Scanner Manufactures

Brand Name : YJFIRST

Model Number : YJ-ES531

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : 1 - 100 pieces $57 100 -500 pieces $56 500 -1000 pieces $55

Payment Terms : T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union

Supply Ability : 20000pcs/month

Delivery Time : 3-7 work days

Packaging Details : Gift box

Product name : Passport Document Reader

Symbologies : 1D/2D/QR Code

Application : Kiosk,Vending Machine

Light source : LED Lights

Weight : <35g

Successful Prompt : Green LED, Beeper

Contact Now

Passport Document Reader International Travel Passport Reader Passport Ocr Scanner

product features

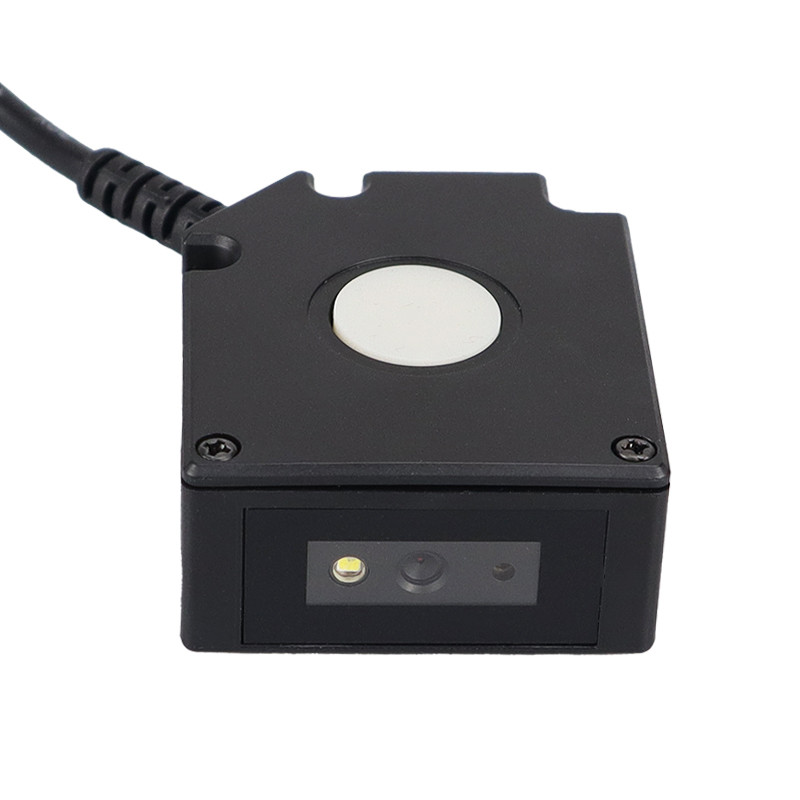

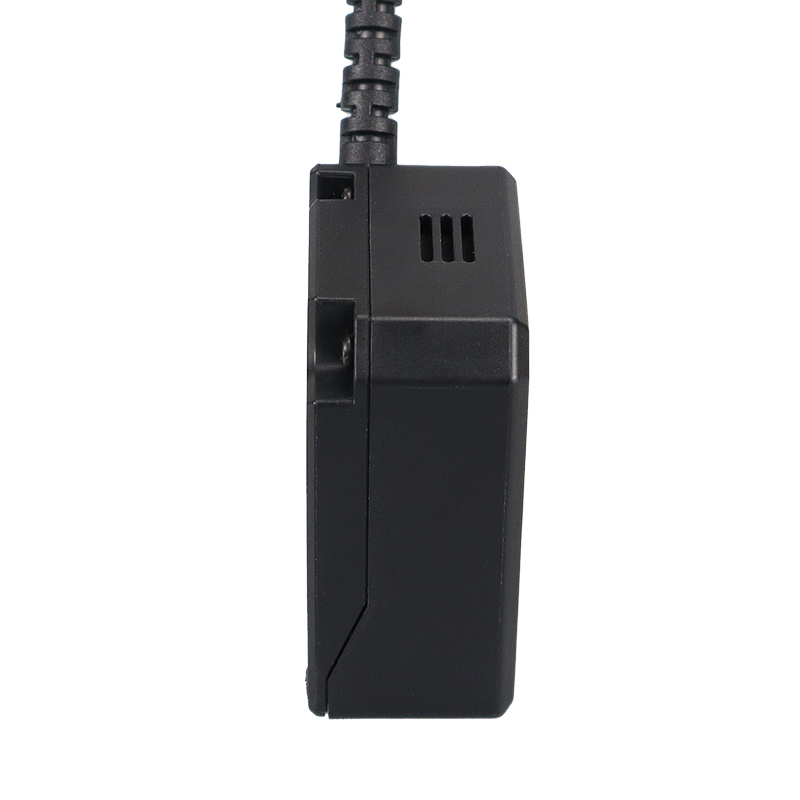

Compact Form - factor: The scanner has a small, square - shaped body, which is highly space - efficient and

portable.

USB Connectivity: It is equipped with a standard USB cable, allowing for easy and quick connection to different

devices, such as computers and tablets.

Fast Scanning: Capable of rapidly reading barcodes, it significantly improves the speed of data - collection tasks.

High Accuracy: Offers precise barcode recognition, minimizing errors in data entry and collection.

Indicator Lights: Features indicator lights on the front, which provide visual feedback on the scanning status and

device operation.

Product Description

Sensor Capability
Image Sensor	1280*800 CMOS
Acquisition speed	60fps
Field of View	Diagonal 48.7°,Horizontal 42°,Vertical 27°
Scan Capability
Scan Precision	2D≥4mil,1D≥3mil
Depth of Field	Testing Condition
	Code 39 (4mil)		60~160mm
	Code 128 (5mil)		40~230mm
	Code 39 (5mil)		45~200mm
	Code 39 (20mil)		70~420mm
	100% UPCA		55~310mm
	PDF417 (5mil)		40~220mm
	Data Matrix (10mil)		35-210mm
	QR Code (20mil)		35~340mm
Scan Angle	Roll 360°,Pitch ± 55°,Skew ± 55°
Symbologies	2D Code: QR Code,Data Matrix,PDF417,Hanxin Code,Dotcode etc
	1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc
	OCR-A,OCR-B(*Customized Version)
Minimal Print Contrast	20%
LED
Illumination	White LED
Laser Aiming
Aiming	Laser diode 650nm
Mechanical
Dimension	(W×D×H):41.4mm×48mm×21mm
Weight	35g
Interface
Interface	USB serial port/USB KBW/USB HID-POS/TTL-3.3V/TTL-5V/RS232/RS485
Cable	2 meter USB-A cable,2 meter DB9 cable with USB power supply
Scan Mode	Trigger mode /Command mode /Sense mode
Environmental
Operating Temperature	-30℃ ~ 70℃
Storage Temperature	-40℃ ~ 80℃
Humidity	5% ~ 95%(non-condensing)
Ambient Light	Max.100,000 Lux
Electric
Input Voltage	3-3.6V or 3.6-16V
Current@5VDC Operating	<220mA
Current@5VDC Standby	<15mA
Certifications
Certificates		IEC62471
Warranty		2 Years

Compact Passport Document Reader High Accuracy Travel Document Scanner

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience

in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD

barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning

platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,

supermarket, retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.

Exhibition

Applications

Transportation

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more
details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept  online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
